item |
value |
|
Basic parameters |
||
Vehicle type: |
ELECTRIC Vehicle (New Car) |
|
Manufacturer: |
FAW-Volkswagen |
|
Level: |
Compact SUV （Tharu) |
|
Energy type: |
Pure electric |
|
Time to Market: |
2023.1 |
|
Motor（Ps): |
Pure electric 204Ps |
|
Pure electric range (km)CLTC: |
600 |
|
Charging time (hours): |
Fast charging: 0.67 hours Slow charging: 12.5 hours |
|
Fast Charge Capacity (%): |
30-80 |
|
Max power(kW): |
150(204Ps) |
|
Max torque (N.m): |
310 |
|
Gearbox: |
Electric vehicle single speed gearbox |
|
Length×width× height (mm): |
4592*1852*1629 |
|
Body structure: |
5-doors 5-seats SUV |
|
Max speed (km/h): |
160 |
|
Official 0-50Km acceleration time (s): |
3.2 |
|
Power consumption per 100 kilometers (kWh/100km): |
14.3kWh |
|
Electric energy equivalent fuel consumption(L/100km): |
1.62 |
|
Body |
||
Length (mm): |
4592 |
|
Width (mm): |
1852 |
|
Height (mm): |
1629 |
|
Wheelbase (mm) |
2765 |
|
Body structure |
SUV |
|
Number of doors (Pieces) |
5 |
|
Door opening method |
Side hinged door |
|
Number of seats (pieces) |
5 |
|
Curb weight (kg) |
2130 |
|
full load mass (Kg) |
2660 |
|

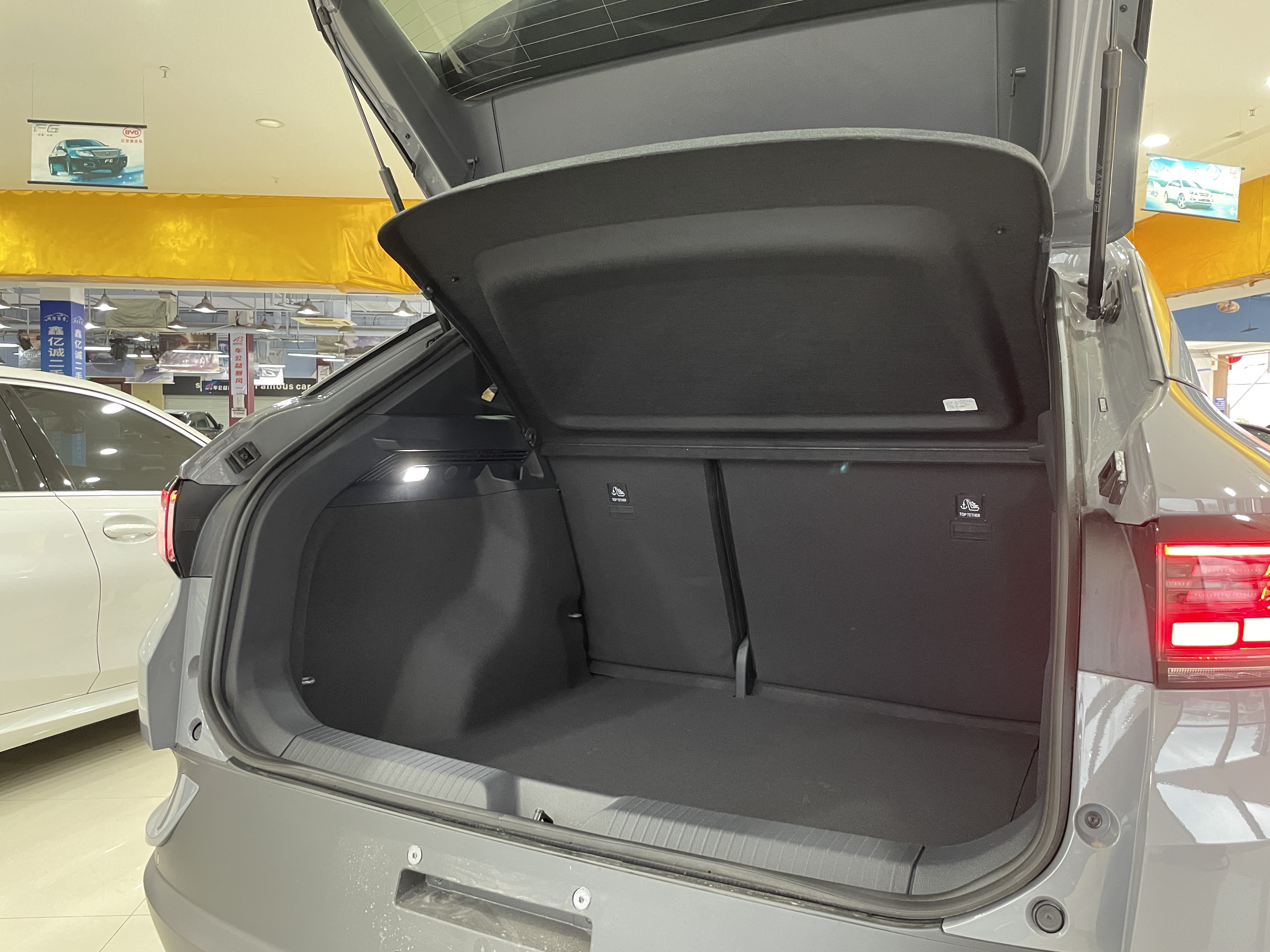

luggage compartment volume |
512 |
|
Electric motor |
||
Motor description |
Pure electric(204Ps) |
|
Motor Type |
Permanent magnet/synchronous |
|
Motor total power (kW) |
150 |
|
Motor total horsepower (Ps) |
204 |
|
Total Motor Torque (N · m) |
310 |
|
Max power of rear motor (kW) |
150 |
|
Max torque of rear motor (N·m) |
310 |
|
Number of drive motors |
Single motor |
|
Motor layout |
Rear |
|
Charging batteries |
||
Battery type |
Ternary lithium battery |
|
Battery brand |
CATL |
|
Battery capacity(kwh) |
84.8 |
|
Charging batteries |
Fast charging: 0.67 hours Slow charging: 12.5 hours |
|
Fast charging interface |
||
Fast charging interface location |
Right fuel tank |
|
Slow charging interface location |
Right fuel tank |
|
Battery Temperature Management System |
Low temperature heating |
|
Liquid cooling |
||
Gearbox: |
||
Gearbox Description |
Electric vehicle single speed gearbox |
|
Gears |
1 |
|
Gearbox type |
fixed gear ratio gearbox |
|
Chassis/Steering |
||
Drive mode |
Rear drive |
|
Front suspension |
McPherson independent suspension |
|
Rear suspension |
Multi-link independent suspension |
|
Steering type |
Electric assist |
|
Body structure |
load-bearing |
|
Wheels/brakes |
||
Front brake type |
Ventilated Disc |
|
Rear brake type |
Drum |
|
Parking brake type |
Electronic parking |
|
Front tire size |
235/50 R20 |
|
Rear tire size |
255/45 R20 |
|
Active safety |
||
ABS anti-lock |
● Standard |
|
Braking force distribution (EBD/CBC, etc.) |
● Standard |
|
Brake Assist (EBA/BA, etc.) |
● Standard |
|
Traction Control (TCS/ASR, etc.) |
● Standard |
|
Body Stabilization System (ESP/DSC, etc.) |
● Standard |
|
Active Safety Warning System |
● Lane departure warning |
|
● Forward collision warning |
||
● Reversing vehicle side warning |
||
● DOW open door warning |
||
Active braking |
● Standard |
|
Parallel Assist |
● Standard |
|
Lane Keeping Assist |
● Standard |
|
lane centering |
● Standard |
|
Fatigue Driving |
● Standard |
|
Road Traffic Sign Recognition |
● Standard |
|
Passive safety |
||
Front airbag |
● driver's seat |
|
● co-pilot |
||
Side airbag |
● Front row |
|
side curtain airbags |
● Standard |
|
Prompt for seat belt not fastened |
● Standard |
|
Tire Pressure Monitoring System |
● Tire pressure alarm |
|
Child Seat Interface (ISOFIX) |
● Standard |
|
Safety tire |
● Standard |
|
Assist/Control Configuration |
||
Parking radar |
● Front |
|
● Rear |
||
Driving Assistance Video |
● Reverse image |
|
● 360°panoramic image |
||
Cruise system |
● Cruise control |
|
● Adaptive cruise |
||
● Full speed adaptive cruise |
||
Assisted driving level |
L2 |
|
Automatic parking (AUTOHOLD) |
● Standard |
|
Uphill Assist (HAC) |
● Standard |
|
Driving mode selection |
● Sport |
|
● ECO |
||
● Standard comfort |
||
Brake energy recovery system |
● Standard |
|
Low speed driving warning sound |
● Standard |
|
External configuration |
||
Skylight type |
Panoramic sunroof cannot be opened (● Standard) |
|
Openable panoramic sunroof (●Optional) |
||
Roof rack |
● Standard |
|
Active closed air intake grille |
● Standard |
|
Aluminum alloy wheel hub |
● Standard |
|

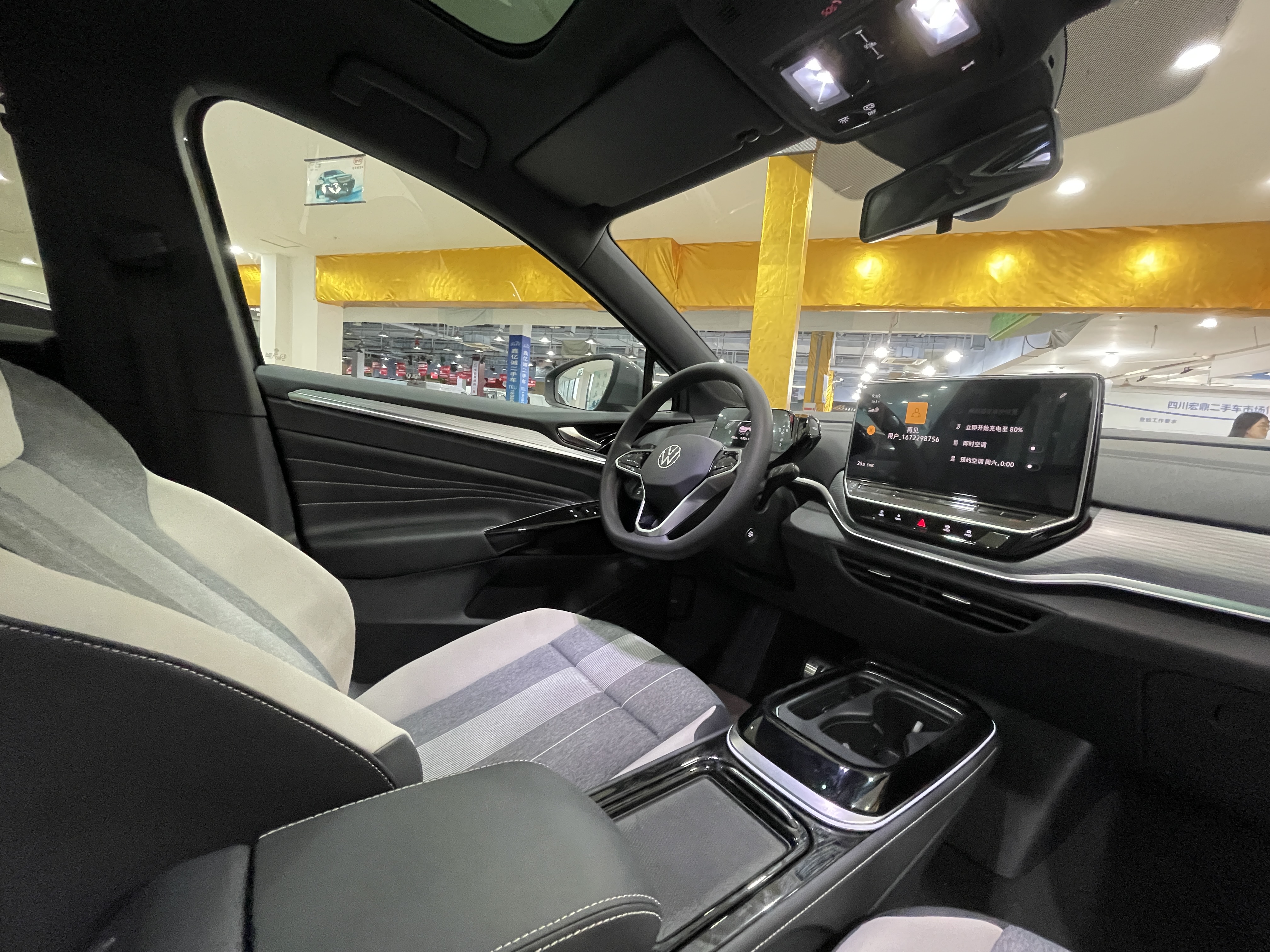

Internal configuration |
||
Steering wheel material |
● Genuine Leather |
|
Steering wheel adjustment |
● Up and down + front and back |
|
Steering wheel function |
● Multifunction control |
|
● Heating |
||
Driving computer screen |
● Color |
|
LCD instrument style |
● Full LCD |
|
Liquid crystal meter size (inch) |
● 5.3 |
|
Comfort/Anti-Theft Configuration |
||
Electric tailgate |
● Standard |
|
Inductive tailgate |
● Standard |
|
Electric tailgate position memory |
● Standard |
|
Interior central lock |
● Standard |
|
Remote control key type |
● Intelligent remote control key |
|
Keyless entry |
● Front |
|
Keyless start |
● Standard |
|
Remote startup |
● Standard |
|
Head up display system（HUD) |
●Optional |
|
Augmented reality head-up display system (AR-HUD) |
●Optional |
|
Mobile phone wireless charging |
● Standard |
|
Seat configuration |
||
Seat Material |
●Imitation leather |
|
Seat layout |
●2+3 |
|
Electric Seat Adjustment |
●driver's seat |
|
●co-pilot |
||
Overall adjustment of the driver's seat |
● move back and forth |
|
●backrest angle |
||
● height adjustment |
||
Partial adjustment of the driver's seat |
●Headrest |
|
●Waist |
||
Overall adjustment of passenger seat |
●move back and forth |
|
●height adjustment |
||
●backrest angle |
||
Partial adjustment of passenger seat |
●Headrest |
|
●Waist |
||
Front seat function |
● Heating |
|
● Memory |
||
● Massage |
||
Front/rear armrest |
●Front row |
|
●back row |
||
Rear cup holder |
● Standard |
|
Rear seat down ratio |
●40:60 |
|
Smart Internet |
||
Central color screen size (Inch) |
● 12 |
|
Screen layout |
●Traditional dual-screen layout |
|
GPS navigation system |
● Standard |
|
AR real-world navigation |
● Optional |
|
Navigation road condition information display |
● Standard |
|
Road rescue services |
● Standard |
|
Bluetooth/car phone |
● Standard |
|
Mobile Internet Mapping |
● CarPlay |
|
● CarLife |
||
Internet of Vehicles |
● Standard |
|
4G/5G network |
● 4G |
|
OTA upgrade |
● Standard |
|
Voice recognition control system |
● Standard |
|
Voice sub-area wake-up recognition function |
● Main driver |
|
Voice assistant wake word |
hello Volkswagen |
|
Wi-Fihotpot |
● Standard |
|
Media entertainment |
||
Multimedia interface |
● USB/Type-C |
|
USB/Type-Number of interface |
●2 front row |
|
● 2 back row |
||
Number of speakers (Pieces) |
● 7 |
|
Lighting configuration |
||
Low beam |
● LED |
|
High beam |
● LED |
|
Daytime running lights |
● Standard |
|
Adaptive far and near light |
● Standard |
|
Automatic headlights |
● Standard |
|
Penetrating headlights |
● Standard |
|
Through tail lights |
● Standard |
|
Headlight Adaptive Steering (AFS) |
● Standard |
|
Headlight height adjustment |
● Standard |
|
Interior ambient light |
● 30 colors |
|
Active Ambient Mood Lighting |
● Standard |
|
Lighting Features |
● Matrix |
|
Headlight off delay |
● Standard |
|
Headlight rain and fog mode |
● Standard |
|
Glass/Rearview mirror |
||
Electric windows |
●Front row |
|
●Back row |
||
One-button window lift |
●Whole car |
|
Window anti-pinch function |
● Standard |
|
Exterior rearview mirror function |
Electric adjustment |
|
● Heating |
||
●Electric folding |
||
●memory |
||
●Automatic downturn when reversing |
||
●Automatic folding when locking the car |
||
Interior rearview mirror function |
●Automatic anti-glare |
|
Vanity mirror |
●Main driving position + lighting |
|
●co-pilot +lighting |
||
Rear privacy glass |
● Standard |
|
Rain Sensing Wipers |
● Standard |
|
Rear wiper |
● Standard |
|
Front windshield electric heating |
● Optional |
|
Heated water nozzle |
● Optional |
|
Air conditioner/refrigerator |
||
Air conditioning control mode |
● Auto |
|
Rear air outlet |
● Standard |
|
Temperature zone control |
●Dual Zone Air Conditioning |
|
Car air purifier |
● Standard |
|
In-car PM2.5 filter |
● Standard |
|
Intelligent configuration |
||
Assisted driving operating system |
● IQ.Drive |
|
Mobile App remote control |
●Vehicle monitoring |
|
●Charge management |
||
●Remote control |
||
●Service appointment |
||
Heat pump management system |
● Optional |
|
Number of cameras outside the car (units) |
● 5 |
|
Ultrasonic radar quantity (Pieces) |
●12 |
|
Number of millimeter wave radars (Pieces) |
● 3 |
|
